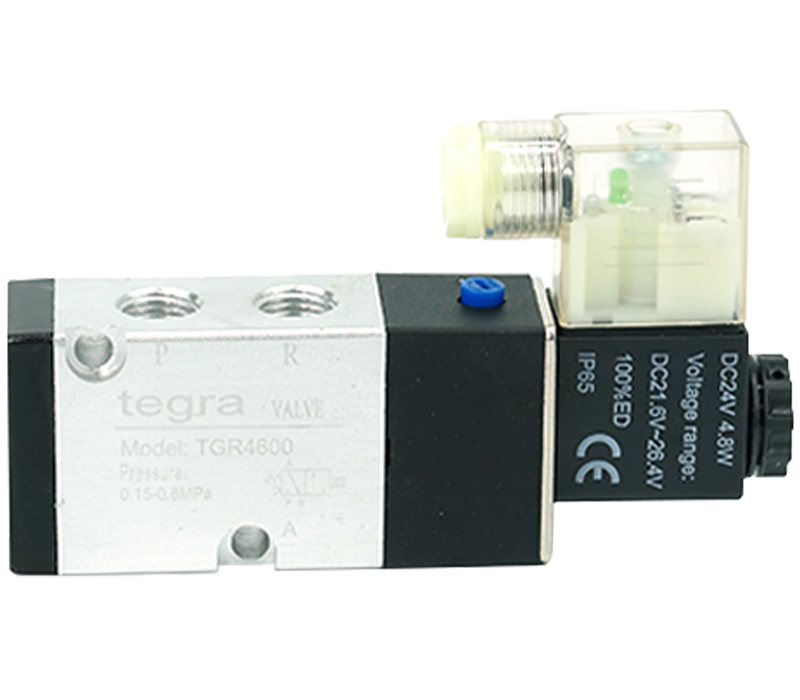

Namur valve is a type of solenoid valve often used in pneumatic systems, which controls the air to the pneumatic actuator, allowing valves to open and close.
Namur valves receive an electrical signal and convert it into a pneumatic movement. In this way, it controls the movement of the actuator, allowing the valve to open and close. This process plays an important role in providing automation in pneumatic systems.
Get a Quote Whatsapp
| Product Details | |
|---|---|
| Application Areas | Pneumatic actuator control |
| Coil Voltage | 230/220 V AC, 110V, 24V, 12V AC, 24V, 12V DC |
| Protection Class | IP 65 |
| On-Off Time | max 30 mS |
| Voltage Tolerance | +/- 10% |
| Measure Number of Roads | G (BSP) 1/4" - 5/2 |
| Operating Pressure | 0.5 / 10 Bar |
| Ambient Temperature | -5°C / 60°C |
| Lubrication | Not Required |
| Fluid | Air, Inert Gas |
| Model Number | Single Coil NM52W1S |
